How Sound Reactive RGB Lights Work — Complete Explanation 2026

How Sound Reactive RGB Lights Work — Complete Explanation 2026

Sound reactive RGB lights work by combining three components: a microphone that captures ambient audio, a microcontroller that processes the audio signal in real time, and an RGB LED strip controlled by that microcontroller. The microphone converts sound waves into electrical signals. The microcontroller analyses those signals — measuring volume, frequency, and beat patterns — and translates them into LED brightness, colour, and pattern changes. The total response time from sound to LED change is typically under 50 milliseconds, fast enough to appear instantaneous to the human eye.

This is the technology behind every viral RGB setup you've seen on Indian Instagram Reels — and it's simpler than most people assume. Here's exactly how it works, broken down step by step.

The Three Components

Every sound reactive RGB device has the same three building blocks:

1. The Microphone A small electret condenser microphone is built into the device. This microphone is the sensor — it converts sound waves in the air into electrical signals. The signal is analog at this stage, just like a headphone signal.

2. The Microcontroller A small computer chip — typically a microprocessor like the ESP32 or STM32 — receives the analog signal from the microphone. The microcontroller is the brain. It samples the audio signal thousands of times per second and runs algorithms that extract specific information: how loud the sound is, what frequencies are dominant, whether a beat just hit.

3. The RGB LED Strip A strip of individually addressable LEDs (typically WS2812B or similar) sits behind a diffusing material. Each LED can display 16 million different colours and brightness levels. The microcontroller sends instructions to each LED individually — which colour, how bright, when to change.

The Step-by-Step Process

Here's what happens in the 50 milliseconds between you playing music and the lights responding:

Step 1 — Sound enters the microphone (0 ms) A bass note plays through your speakers. The sound wave reaches the device's microphone and converts to an electrical signal.

Step 2 — Signal is digitised (5 ms) The microcontroller's analog-to-digital converter (ADC) samples the analog signal — typically at 44.1kHz, the same rate as CD audio — and converts it into digital values the microcontroller can process.

Step 3 — Frequency analysis (15 ms) The microcontroller runs a Fast Fourier Transform (FFT) on the digital signal. FFT decomposes the audio into its constituent frequencies — bass (20-250 Hz), mids (250-4000 Hz), and treble (4000-20000 Hz). This tells the microcontroller exactly what kind of sound is playing.

Step 4 — Pattern detection (25 ms) The microcontroller analyses the frequency data over time to detect patterns — beat hits, sustained notes, sudden volume changes. Beat detection algorithms compare current volume to recent average volume; when current volume exceeds the average by a threshold, that's identified as a beat.

Step 5 — LED instruction generation (35 ms) Based on the detected patterns, the microcontroller decides what each LED should do. A bass beat might trigger every LED to flash white briefly. A high-frequency cymbal hit might trigger a quick blue-to-green colour shift. Sustained notes might create slow gradient transitions.

Step 6 — LEDs update (45 ms) The microcontroller sends colour and brightness commands to each individual LED via a single data wire. The LED strip updates in microseconds. Total time from sound entering the room to LED change: approximately 45-50 milliseconds — visually instantaneous.

Why Different Modes Look Different

Most RGB sound reactive devices have multiple modes — typically 5-10 different visualisation styles. Each mode is just a different algorithm running on the same input data:

Spectrum Mode maps frequencies directly to LED positions — bass on the left, treble on the right. The LEDs light up at different positions based on which frequencies are present.

Pulse Mode triggers all LEDs to flash on every detected beat, with brightness proportional to the beat intensity.

Wave Mode sends colour patterns travelling across the LED strip, with the wave speed and intensity controlled by the music's tempo and volume.

Solid Mode has all LEDs change colour together based on the overall audio amplitude — quiet music = dim, loud music = bright.

The same audio signal produces completely different visual results depending on which mode is active. The mode is just the algorithm choice — the underlying input is identical.

Why Some RGB Devices "React" Better Than Others

Three factors determine quality:

Microphone sensitivity — cheap microphones have a narrow frequency response and miss nuances in music. Better microphones capture the full frequency range and sensitivity.

Microcontroller speed — faster chips run more sophisticated algorithms. The difference between a ₹500 reactive light and a ₹1,500 one is often not the LEDs but the processor handling the audio analysis.

LED quality and density — more LEDs per unit length create smoother gradients and more detailed visualisations. Cheap LED strips look pixelated; quality strips look like flowing light.

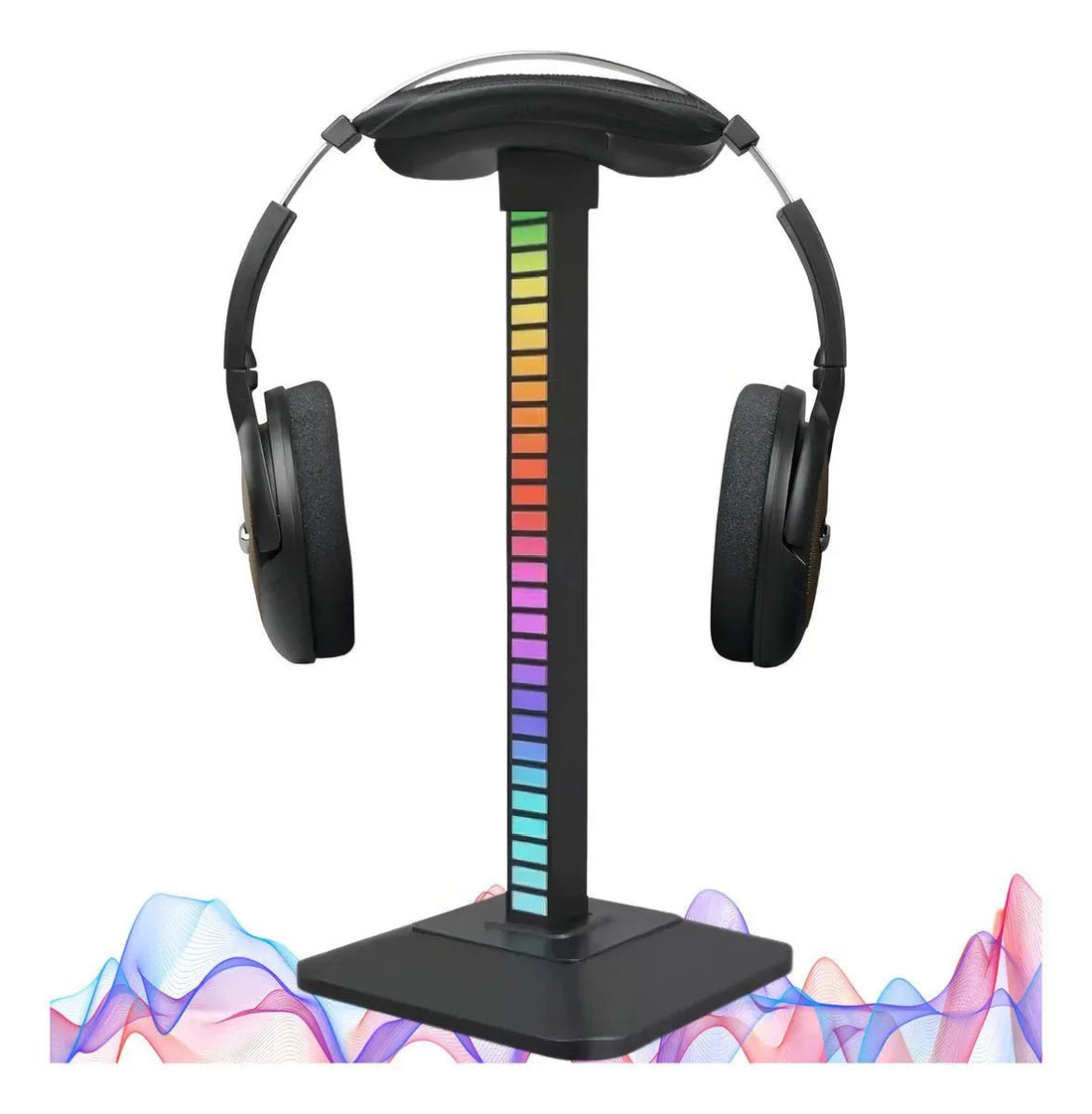

The ShopzyKart RGB Sound Reactive Headphone Stand uses higher quality components than basic versions, which is why the reactivity is noticeably more responsive than ₹400-600 alternatives on Amazon.

What This Means for Your Setup

When you're choosing between RGB sound reactive products, the questions to ask are:

  • Does it have a built-in microphone? (Required for true reactivity)
  • Are there multiple modes? (Better processing usually means more modes)
  • Is the response visibly instant or is there a lag?
  • Does it react to music in another room, or only when audio is right next to it?

The ShopzyKart version handles all four positively — built-in microphone, multiple modes, sub-50ms response, room-level audio sensing.

Related Articles

FAQ

How do sound reactive RGB lights work? Through three components — a microphone captures audio, a microcontroller processes the signal in real time using frequency analysis and beat detection, and the RGB LED strip displays the resulting visualisation. Total response time is under 50 milliseconds.

What's inside a sound reactive RGB device? A built-in microphone, a microcontroller chip (typically ESP32 or STM32), an RGB LED strip (typically WS2812B), and a power input (USB).

Why do some sound reactive lights look more responsive than others? Microphone sensitivity, microcontroller processing speed, and LED quality. Cheaper devices use slower chips and lower-quality LEDs, which produce visibly less responsive and less detailed visualisations.

Do sound reactive lights need to be near the speaker? Quality versions can detect audio across a room. Lower-quality versions need to be very close to the speaker. Look for products with mentioned room-level sensing.

Where can I buy a quality sound reactive RGB headphone stand in India? The ShopzyKart RGB Sound Reactive Headphone Stand at ₹1,499 — free shipping and COD across India.
